Ironmongery
Concealed bearing butt hinge
Suitable for use on timber doors up to FD120 160kg Maximum Door weight
- VHC243 102x76x3mm Grade 14 Concealed Bearing Butt Hinge.
- BS EN 1935:2002 4-7-6-1-1-4-0-14 CE (UKCA)
- BS EN 1634-1
- 25 year mechanical warranty
-
Satin Stainless
-
Polished Stainless Steel
-
PVD Polished Brass
-
PVD Light Bronze
-
PVD Satin Brass
-
Powder Coated Black
-
Powder Coated White
Ball bearing butt hinge
Suitable for use on timber doors up to FD120 120kg Maximum door weight
- ZHSS243 102x76x3mm Grade 13 Ball Bearing Butt Hinge.
- BS EN 1935:2002 4-7-6-1-1-4-0-13. CE (UKCA).
- BS EN 1634-1
- 10 year mechanical warranty
-
Satin Stainless Steel
-
Polished Stainless Steel
-
PVD Polished Brass
-
PVD Satin Brass
-
PVD Light Bronze
-
Powder Coated Black
-
Tuscan Rose Gold
-
Etna Bronze
-
Matt Black
-
Powder Coated White

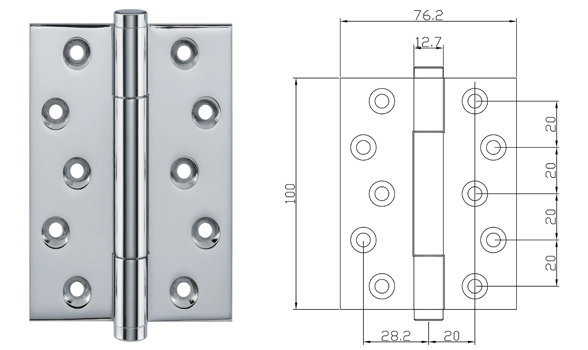

Tritech Brass Hinge
TRITECH Brass hinges use a special bearing technology for demanding applications. They can be plated or polished in an multitude of decorative finishes to match many different requirements, combine this with finial tips to create the perfect aesthetics for any environment. Maintenance free, 25 year performance guarantee.
Suitable for use on timber doors up to FD120 160kg maximum door weight. Grade 14.
BS EN 1935 :2002 4-7-7-1-1-4-0-14 CE (UKCA)
BS EN1634-1- 1750 – 100 x 75 x 3.5mm
- 1780 – 100 x 88 x 3.5mm
- 1760 – 100 x 100 x 3.5mm
- Aged Brass
- Antique Brass
- Antique Nickel
- Black Nickel
- Copper Bronze
- Copper
- Honeycombe
- Imitation Bronze Metal Antique
- Midnight
- Pearl Nickel
- Polished Chrome
- Polished Brass
- Polished Nickel
- Satin Brass Lacquered
- Satin Chrome

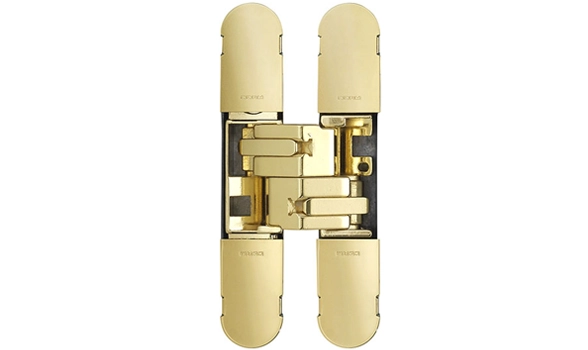

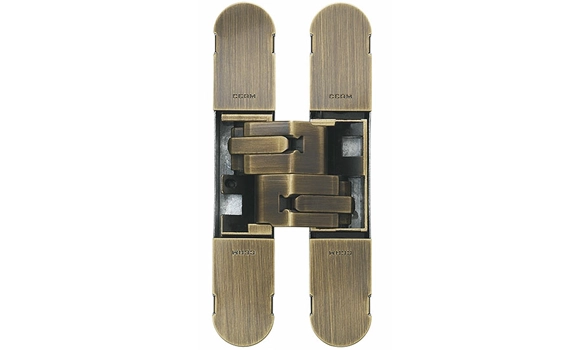

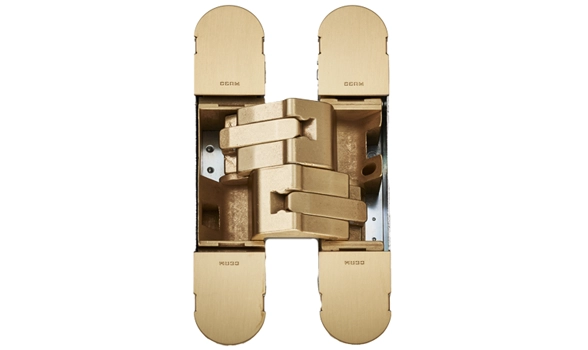

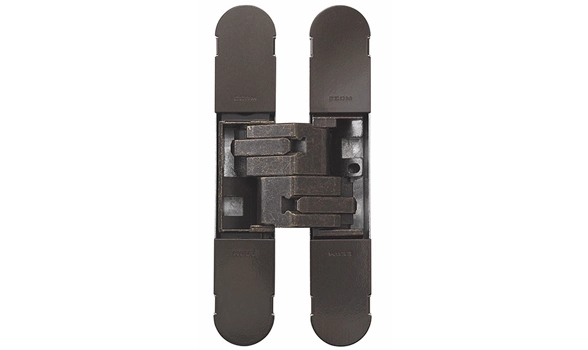

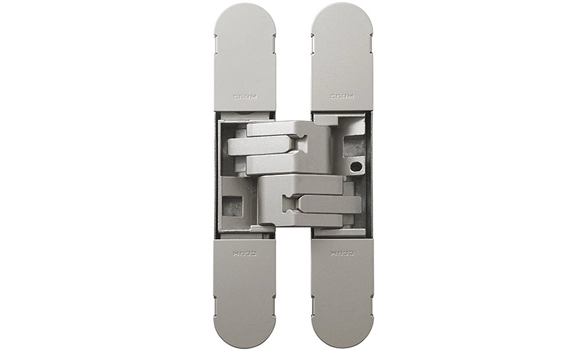

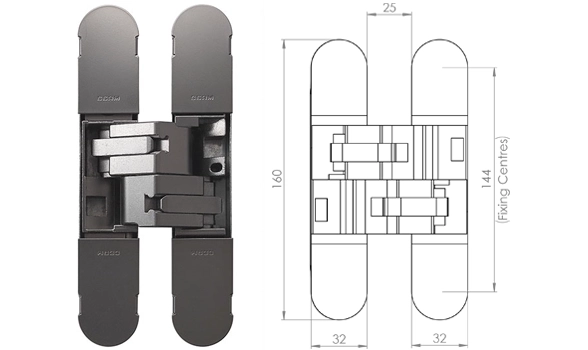

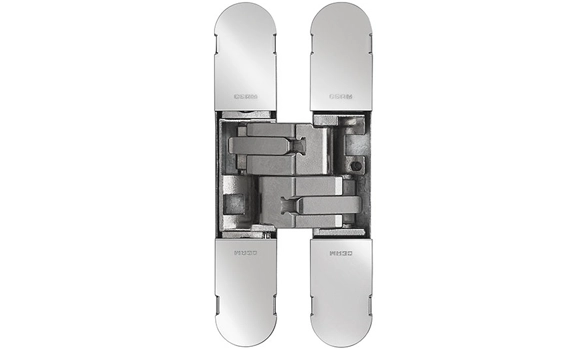

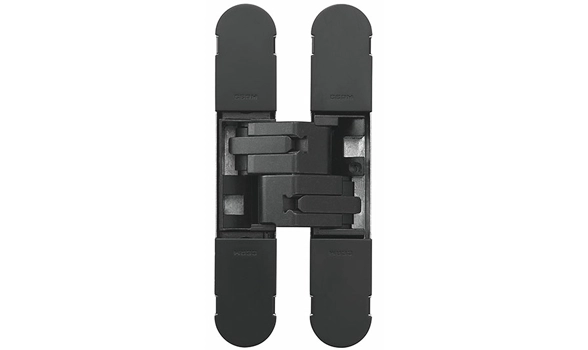

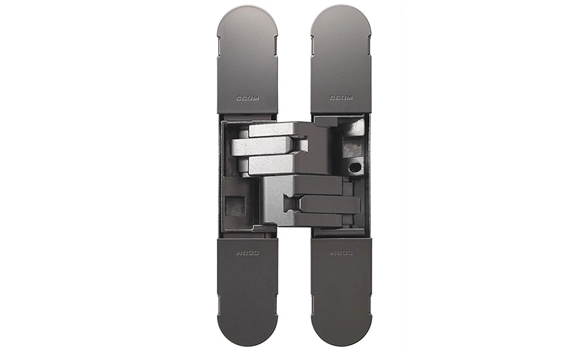

Concealed Hinge
Ceam 3D Concealed Hinge. Medium to heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Comes with a 10 year mechanical guarantee.
Suitable for 28mm to 58mm thick doors
- European Technical Evaluation 18/0657 CE
- FD30 & FD60
- Ranging from 40kg to 120kg
- Black Nickel
- Bronze Plated
- Antique Plate
- Galvanic Satin Brass
- Brass Plated
- Champagne
- Matt Black Varnish
Locks and latches
Suitable for use with lever handles or mortice knob furniture on FD30 & FD60 doors
- ZTLKA Architectural HD Tubular Latch & ZTDA Architectural Tubular Deadbolt.
- Available 2.5″ to 6″ body to suit lever handles or door knob furniture.
- BS EN12209:2003 1-C-1-7-0-F-etc CE (UKCA) FD30/60.
- BS EN12209:2003 1-C-7-1-0-F-0-B-0-NPD-0 CE (UKCA) FD30/60.
- BS EN1634-1.
- 10 year mechanical warranty.
- Satin Stainless Steel
- PVD Nickel
- PVD Polished Brass
- Polished Stainless Steel
- Powder Coat Black
- Florentine Bronze

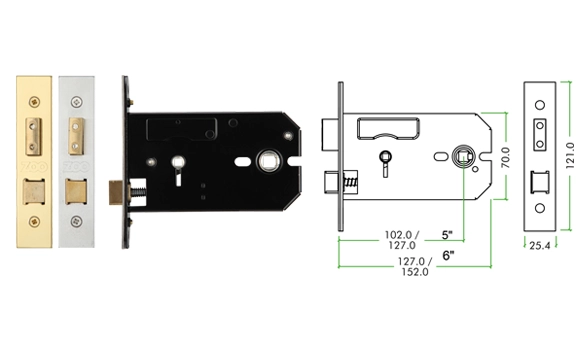

Horizontal Mortice Locks & Latches
Suitable for use with mortice knob furniture on non fire rated doors
- ZUKH Architectural Horizontal Case For Mortice Knob Furniture.
- Available 5″ (127mm) and 6″ (152mm) case. With latch, bathroom lock, 3 lever sashlock and euro cylinder options.
- 10 year mechanical warranty.
- Satin Stainless steel
- PVD Nickel
- PVD Polished Brass
- Polished Stainless Steel
- Powder Coat Black
- Florentine Bronze

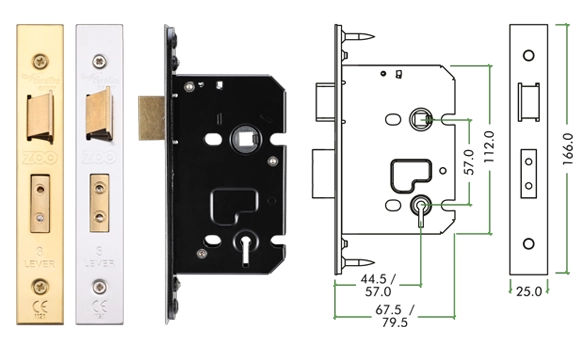

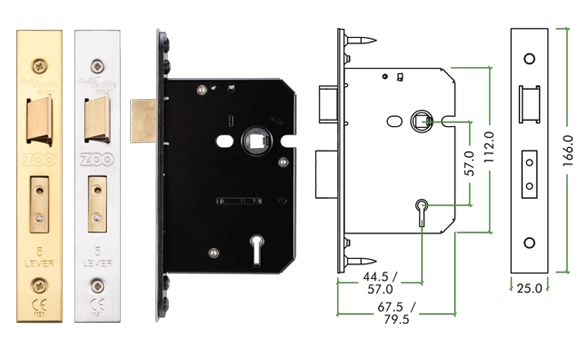

Upright Mortice Locks
Suitable for use with lever handles on FD30 & FD6o doors
- ZUK Architectural Upright Mortice Locks.
- Available 2.5″(64mm) and 3″ (76mmm) case to suit lever handles.
- Available as Latch, Euro, 3 Lever and 5 Lever Sashlock and Bathroom Lock.
- BS EN12209:2003 2-H-8-1-0-G-o-2-B-A-2-o CE (UKCA).
- BS EN1634-1.
- 10 year mechanical warranty.
- Florentine Bronze
- Satin Nickel
- Polished Chrome Plate
- Satin Chrome
- Polished Nickel
- Powder Coat Black
- Polished Brass Unlacquered
- Polished Brass
ZAS Flush Bolt
Suitable for use on FD30 and FD60 doors
- ZAS Flush Bolt
- 20mm x 150mm to 914mm flush bolt
- 11mm diameter bolt
- 15mm bolt throw
- Adjustable bolt throw
- Available in square & radius profiles
- 304 Grade material
- 10 year mechanical guarantee
- Satin Stainless steel
- PVD Nickel
- PVD Polished Brass
- Polished Stainless steel
- Powder Coat Black
- Florentine Bronze
DormaKaba ITS96 Concealed Overhead Door Closer System
Suitable for doors 1400mm wide and FD120 (min 40mm thick leaf requied) Proven to meet the requirements of BS8300 (Equalities Act)- BS EN1154. CE (UKCA) Certifire
- Power size EN 2-4 for door up to 1100mm wide 3-8-4/2-1-1-4
- Power size EN 3-6 for door up to 1400mm wide 3-8-6/3-1-1-4
- Electro-mechanical hold open guide rail to BS EN1155.
External Furniture
Longden has a wide range of external furniture available, including numerals, knockers and letter plates.
Care of Finishes
Like anything special, the architectural hardware on your doors needs looking after. More finishes are ruined by incorrect cleaning than by any other means. Proper care of the finish will extend the life dramatically and maintain the original appearance of the product. For example, proprietary metal polishes or abrasive materials should never be used on plated or lacquered finishes as this can cause irreparable damage to the deposited film. For products which are used internally, regular cleaning with warm soapy water should be enough to keep the finish in its original condition and the occasional use of a good quality wax polish will provide extra protection.
The weather, pollution, humidity, salt, acid rain, etc., can all have a detrimental effect on products which are used externally, and regular use of a good quality wax polish will help to protect them. Plated finishes will benefit from the occasional use of chrome cleaner followed by a wipe-over with a lightly oiled cloth. Unlacquered brass or bronze finishes should be regularly cleaned with metal polish unless the intention is to let the surface age naturally through oxidisation.
